Tooth Comb Pallet
Products Description

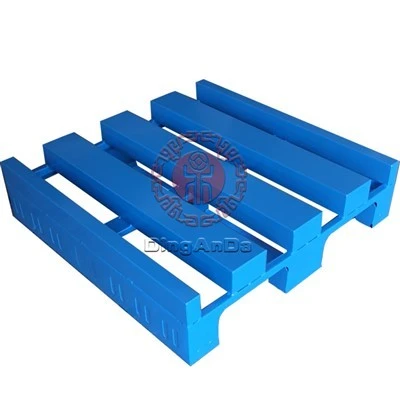

The Tooth Comb Pallet (also called comb tooth pallet or tooth-plate steel flat pallet) is a heavy-duty industrial pallet engineered for the safe storage and handling of glass sheets, curtain-wall panels, door and window profiles, stone slabs, MDF boards and other long or fragile sheet materials. Its name comes from the distinctive comb-shaped top plates: the parallel tooth bars form evenly spaced slots that hold sheet goods upright and separated, preventing sliding, scratching and collision during warehouse storage and forklift transport.
Unlike wooden or plastic pallets, every Tooth Comb Pallet is produced by automatic integrated molding and intelligent robotic welding, which guarantees consistent dimensional accuracy, high structural strength and a high friction coefficient between the contact surfaces. The entire unit is finished with electrostatic powder spraying, delivering a smooth, uniform and corrosion-resistant coating. Each tray has been tested by an international packaging research and testing center, and all products comply with relevant international standards for logistics and packaging equipment.
Because the tray is fully metallic, it is moisture-proof, pest-proof and free from fumigation or ISPM 15 heat treatment - a major advantage for export packaging. It also performs reliably in both high- and low-temperature environments, from cold-chain warehouses to hot workshops, making it a durable, reusable and cost-efficient alternative to disposable packaging.
Key Features & Advantages
Automatic Integrated Molding
One-piece intelligent production ensures high precision, uniform quality and excellent cost performance for volume orders.
High Load Capacity
Rated loading from 1 t to 5 t per tray, with reinforced frames available for heavy glass and stone applications.
High Friction Coefficient
Comb-tooth contact surfaces grip sheet materials firmly, reducing slippage and edge damage during handling.
High / Low Temperature Resistance
Steel structure with powder coating stays stable in freezing and high-heat working conditions.
Moisture-Proof & Pest Control
No rot, no mold, no insect damage - a hygienic, maintenance-free replacement for wooden pallets.
Export-Ready
No fumigation or heat treatment required, saving time and cost on international shipments.
Technical Specifications
| Item | Specification |
|---|---|
| Product name | Tooth Comb Pallet (comb tooth steel flat pallet) |
| Material | High-quality steel, automatic robotic welding |
| Surface treatment | Electrostatic powder spraying (plastic spraying), corrosion-resistant |
| Size (mm) | 1200×1000 / 1200×800 / 1100×1100 / 1165×1165 - customization supported |
| Load capacity (t) | 1 / 1.5 / 2 / 4 / 5 - customization supported |
| Color | Customizable (RAL color system supported) |
| Quantity of top plates | 5 |
| Number of horizontal supports | 3 |
| Quantity of base plates | 3 |
| Type of fork entry | 2-way |
| Stacking | Nestable / stackable design for empty-tray storage |
| Testing & standards | Tested by international packaging research and testing center, in line with international standards |
Size & Load Selection Guide
| Model | Size (mm) | Load (t) | Typical Application |
|---|---|---|---|
| TCT-1210-L | 1200 × 1000 | 1 – 1.5 | Door & window profiles, aluminum extrusions, light panels |
| TCT-1208-M | 1200 × 800 | 1.5 – 2 | Glass sheets, MDF / plywood boards, workshop turnover |
| TCT-1111-H | 1100 × 1100 | 2 – 4 | Large-format glass, curtain-wall panels, warehouse racking |
| TCT-1165-HD | 1165 × 1165 | 4 – 5 | Stone slabs, heavy glass bundles, export sea-freight units |
All dimensions, load ratings, tooth spacing and colors can be customized. Send us your material size and weight, and our engineers will recommend the most cost-effective configuration.
Tooth Comb Pallet vs. Wooden Pallet vs. Plastic Pallet
| Item | Tooth Comb Pallet (Steel) | Wooden Pallet | Plastic Pallet |
|---|---|---|---|
| Load capacity | Up to 5 t | ≤ 1.5 t | ≤ 2 t |
| Service life | 8 – 10 years, reusable | 1 – 2 years | 3 – 5 years |
| Moisture / pest resistance | Excellent | Poor (mold & insects) | Good |
| Temperature resistance | -40 ℃ to 80 ℃ | Warp risk | Brittle in low temp |
| Export fumigation | Not required | ISPM 15 required | Not required |
| Sheet material protection | Comb slots hold sheets upright, anti-slip | Flat deck, sheets slide | Flat deck, sheets slide |
Applications
The Tooth Comb Pallet is widely used in glass deep-processing plants, door and window factories, curtain-wall engineering companies, stone workshops, furniture panel production lines, and third-party logistics warehouses. Typical uses include:
Glass & mirror storage - comb slots separate glass sheets to prevent edge-to-edge contact;
Panel & board turnover - stable in-process storage for MDF, plywood and composite boards;
Profile handling - long aluminum and PVC profiles rest securely across the tooth bars;
Export packaging - reusable steel base for container shipments without fumigation;
Warehouse racking - compatible with standard selective pallet racking and forklift operations.
Why Choose Us as Your Tooth Comb Pallet Manufacturer?
As a professional manufacturer and supplier of logistics and warehousing equipment, we operate automatic integrated molding lines and intelligent welding stations, which keep every Tooth Comb Pallet dimensionally accurate and consistently strong while offering highly competitive factory prices. Standard models ship quickly, and OEM/ODM customization - sizes, loads, tooth pitch, colors and logos - is fully supported.
FAQ
Q: What is a Tooth Comb Pallet used for?
A: It is a steel flat pallet with comb-shaped top plates designed to store and transport sheet materials - especially glass, panels, boards and long profiles - in an upright, separated and anti-slip position.
Q: Can the size and load capacity be customized?
A: Yes. Standard sizes are 1200×1000, 1200×800, 1100×1100 and 1165×1165 mm with 1–5 t loads, but dimensions, load ratings, tooth spacing and colors are all customizable.
Q: Does the Tooth Comb Pallet need fumigation for export?
A: No. As an all-steel product it is exempt from ISPM 15 fumigation and heat treatment, which saves cost and time for international shipments.
Q: How is the tray protected against corrosion?
A: Every tray is finished with electrostatic powder spraying after robotic welding, forming a durable, uniform, corrosion-resistant coating suitable for humid warehouse environments.
Q: What is the delivery time?
A: Standard models are usually in stock; customized orders typically ship within 15–25 days depending on quantity. Contact us for an exact schedule.
Request a Quote for Tooth Comb Trays
Tell us your material size, weight and storage conditions - our engineers will reply with a tailored solution and factory-direct price within 24 hours.
